Surface-mounted picnic tables are a popular choice for commercial outdoor spaces that require added stability, security, and long-term durability. Unlike portable picnic tables that can be moved around freely, surface-mounted tables are anchored directly to concrete or other solid surfaces to help prevent shifting, theft, or damage in high-traffic environments.
You’ll commonly find surface-mount picnic tables at parks, schools, apartment communities, restaurants, break areas, public plazas, campgrounds, and other commercial properties where permanent seating is preferred. There are several different frame styles and mounting methods available depending on the application, installation surface, and desired appearance.
Benefits of Surface-Mounted Picnic Tables
Surface-mounted picnic tables offer several advantages for commercial outdoor spaces, especially in areas with heavy public use.
Improved Stability and Safety
Anchoring the picnic table directly to the ground helps prevent shifting, tipping, or movement during use. This is especially important for schools, parks, and public dining areas.
Helps Reduce Theft and Vandalism
Permanent mounting makes it significantly more difficult to relocate or remove the picnic table from the property.
Easier Site Maintenance
Many surface-mounted frame styles provide open access underneath the table, making it easier to sweep, pressure wash, or maintain the surrounding area.
Ideal for High-Traffic Commercial Spaces
Surface-mounted picnic tables are commonly used at public parks, schools, universities, restaurants, HOA communities, campgrounds, apartment complexes, outdoor break areas, and recreational facilities.
Better Performance in Windy Areas
Permanent anchoring helps prevent tables from shifting during storms or in open outdoor environments with high wind exposure.
The Different Styles and Types of Surface Mount Picnic Tables

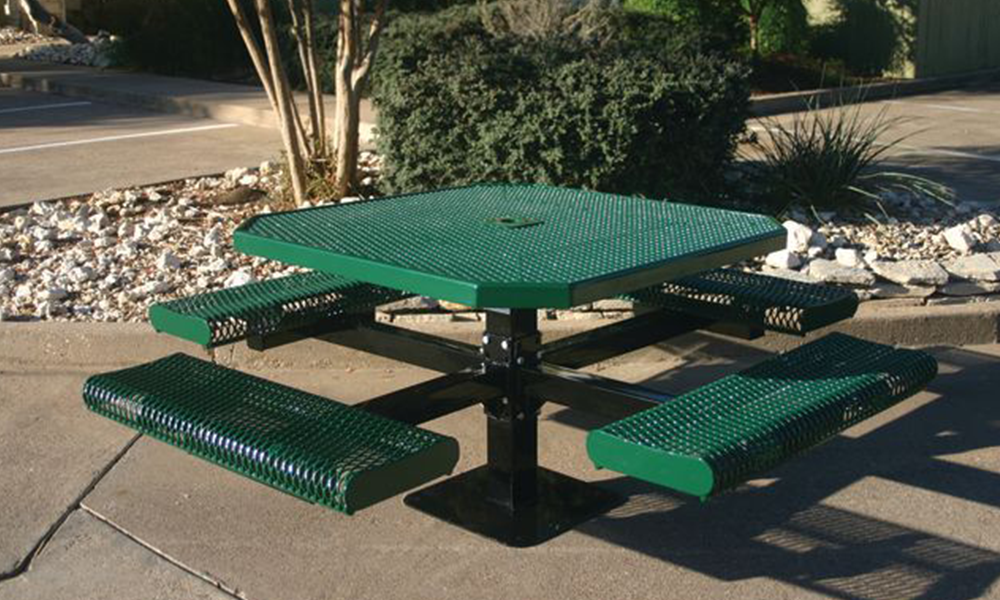

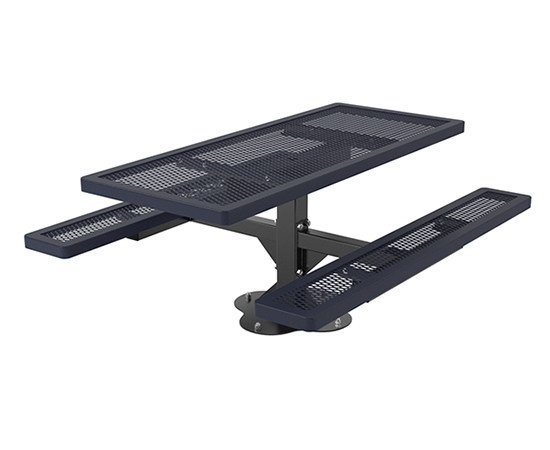

Pedestal Surface Mount Picnic Tables
Pedestal picnic tables are designed with minimal frame contact to the ground, making them one of the easiest styles to clean underneath and around. This style uses a center-mounted pedestal base that supports the tabletop and benches while keeping the perimeter open for better accessibility and maintenance.
Because there are fewer frame contact points touching the surface, pedestal picnic tables are often selected for areas where routine cleaning is important, such as schools, food service areas, and public parks. The open design also provides improved legroom and a cleaner architectural appearance.

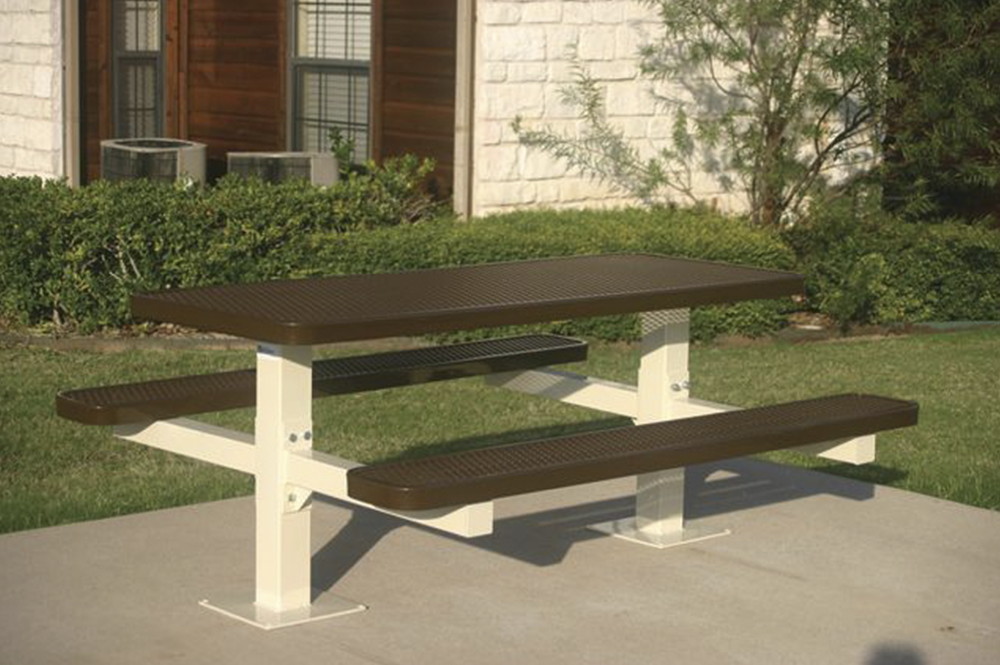

Longer pedestal picnic tables may feature a double-pedestal configuration for added stability and support. This helps evenly distribute weight across larger table lengths while maintaining the same open-frame benefits.

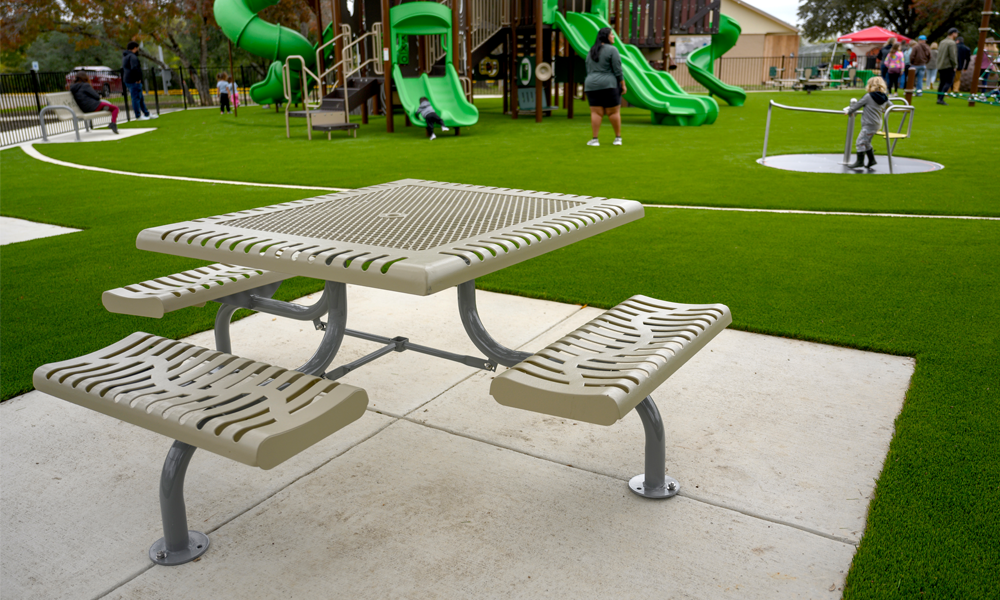

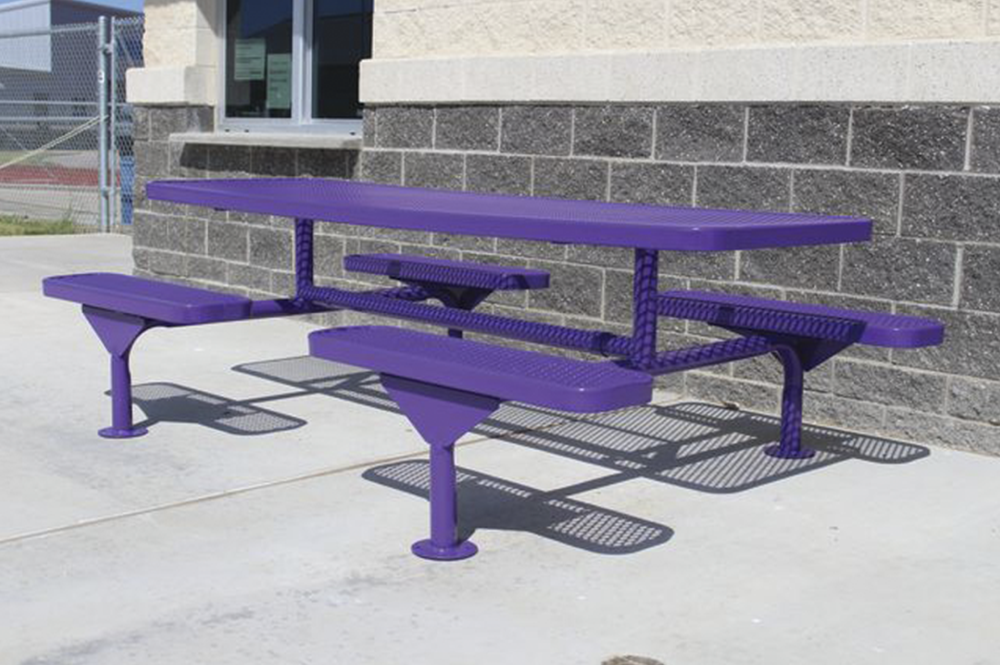

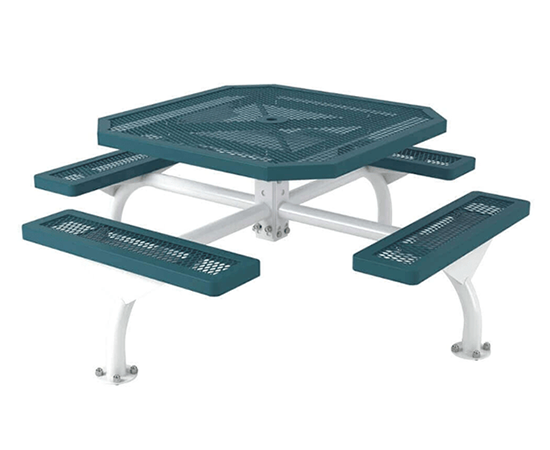

Web or Nexus Surface Mount Picnic Tables
Web or Nexus picnic table frames are engineered to provide both structural support and increased seating comfort. The frame extends underneath each bench seat and loops upward beneath the tabletop, creating open legroom compared to traditional A-frame styles.
This style is commonly used in commercial applications because it combines durability with a more open seating design. Each footing typically includes four bolt holes that allow the frame to be securely anchored to a concrete surface.
Web and Nexus frames are often selected for parks, schools, recreational facilities, and hospitality spaces where permanent installation and long-term stability are important.

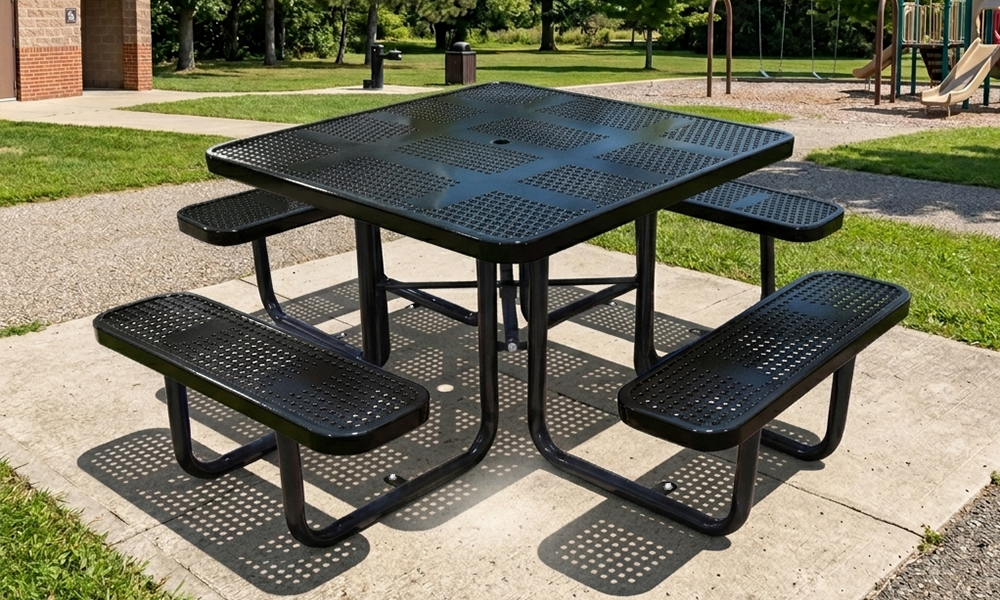

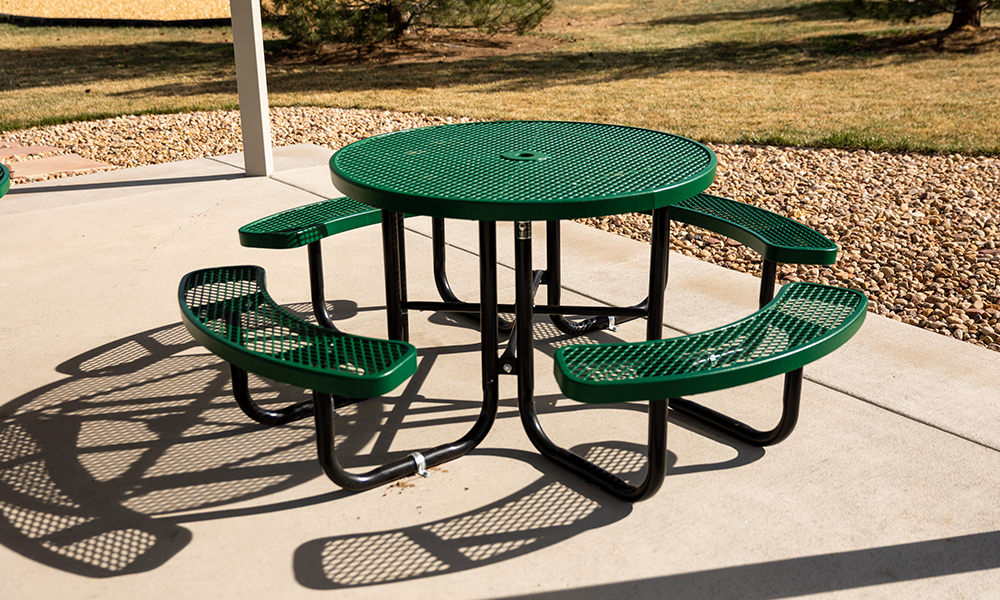

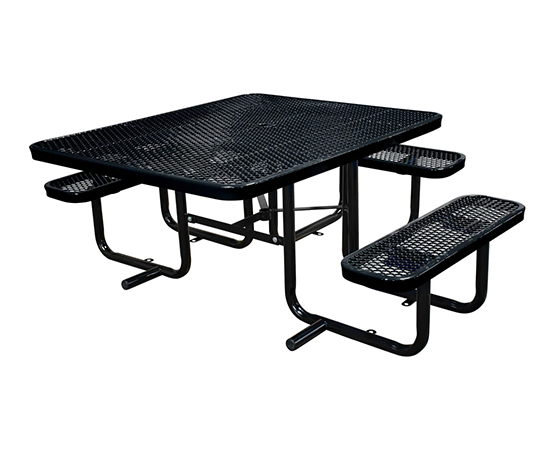

Surface Mount Tabs
Surface mount tabs are steel tabs welded directly onto the picnic table frame. These tabs contain pre-drilled bolt holes that allow the table to be anchored to concrete or maintain the flexibility of a portable-style frame.
This mounting option is especially useful for projects where it is unclear whether the picnic tables will need to remain portable or become permanently installed later. Because the tabs are integrated into the frame itself, the table can function as either a portable or surface-mounted unit, depending on the project requirements.
Surface mount tabs are commonly used in parks, schools, HOA communities, and multipurpose commercial spaces where layout changes may occur over time.

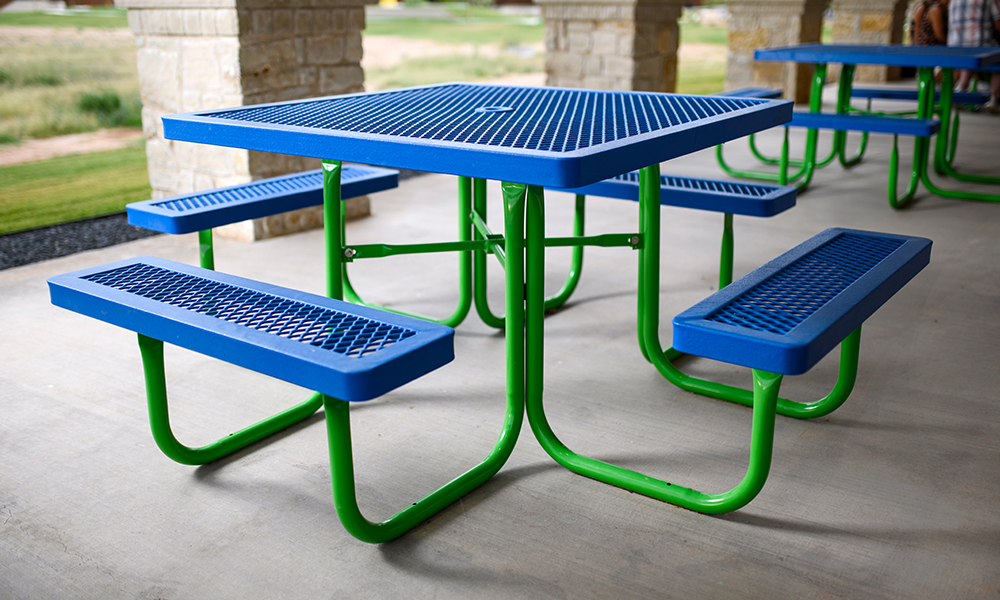

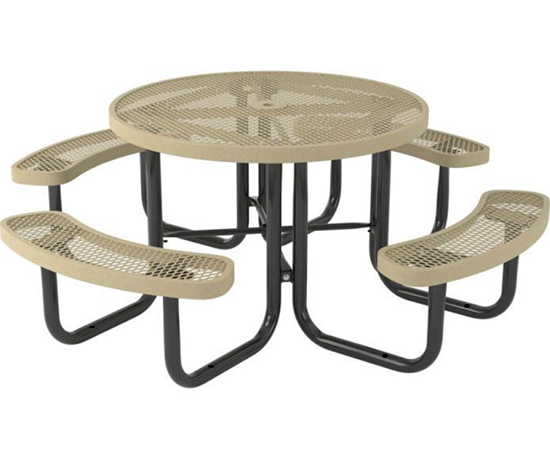

Pre-Drilled Surface Mount Holes
Some picnic table frames are manufactured with pre-drilled holes directly through the steel tubing. This allows long anchor bolts to pass through the frame and into the concrete surface below for a clean and secure installation.
Pre-drilled frames are designed specifically during the manufacturing process. Attempting to drill holes into a picnic table frame after purchase could potentially void the manufacturer’s warranty or compromise the structural integrity of the frame.

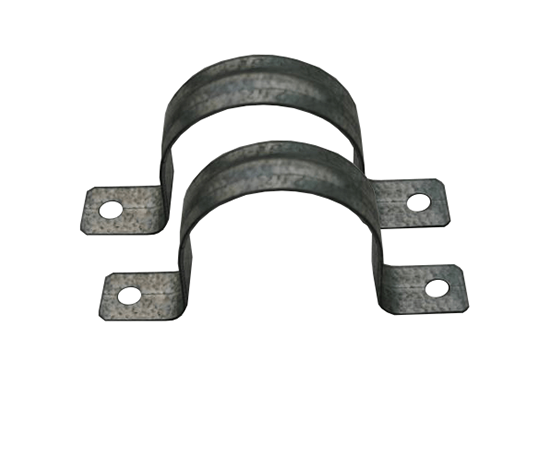

Surface Mount Clamps
Surface mount clamps are an excellent solution when converting an existing portable picnic table into a surface-mounted installation. These clamps wrap around the frame tubing and secure directly into the concrete surface without requiring modifications to the frame itself.
Clamp systems are especially useful for retrofit projects where drilling into the original frame is not recommended or when maintaining the manufacturer’s warranty is important.
When selecting surface mount clamps, it is important to choose the correct clamp size to properly fit the tubing dimensions of the existing picnic table frame.
Comparing Surface Mount Picnic Table Styles
| Style | Best For | Advantages |
|---|---|---|
| Pedestal | Easy cleaning areas | Minimal ground contact and open access |
| Web or Nexus | Comfort and durability | Extra leg room and strong support |
| Surface Mount Tabs | Flexible installations | Portable or permanent mounting |
| Pre-Drilled Holes | Permanent installations | Clean appearance and secure anchoring |
| Surface Mount Clamps | Retrofit projects | No drilling into existing frame |
What Is Needed to Install a Surface-Mount Picnic Table?
Installing a commercial surface mount picnic table typically requires the following tools and materials:
- Concrete surface or stable mounting area
- Concrete anchor bolts or wedge anchors
- Hammer drill
- Masonry drill bits
- Wrenches or socket tools
- Measuring tape
- Safety equipment
- Surface mount hardware or clamps
The exact hardware requirements may vary depending on the mounting style and installation surface.
How to Install a Surface-Mount Picnic Table
1. Position the Picnic Table
Place the picnic table in the desired location and confirm there is adequate spacing for seating access and pedestrian traffic.
2. Mark the Mounting Locations
Use the frame tabs, pedestal bases, clamps, or pre-drilled holes to mark the anchor locations onto the concrete surface.
3. Drill the Concrete Holes
Using a hammer drill and the correct masonry bit size, drill the anchor holes into the concrete.
4. Install the Anchors
Insert the concrete anchors or bolts according to the manufacturer’s installation recommendations.
5. Secure the Picnic Table
Tighten the mounting hardware until the table is firmly secured and level.
Why Don’t Surface-Mounted Picnic Tables Include Mounting Hardware?
Many commercial picnic tables do not include mounting hardware because installation conditions can vary greatly between projects. Different surfaces may require different anchor systems, bolt lengths, or mounting methods.
For example, standard concrete may use wedge anchors, while decorative concrete, wood decking, composite decking, or certain paver systems may require specialty fastening methods. Allowing the installer or contractor to source the proper hardware locally helps ensure the installation matches the specific project requirements and building conditions.
What Surfaces Can Surface-Mount Picnic Tables Be Installed On?
Surface-mounted picnic tables are most commonly installed on concrete because it provides the strongest and most reliable anchoring surface. However, depending on the hardware and mounting method used, they may also be installed on:
- Concrete slabs
- Sidewalks
- Patios
- Decorative concrete
- Wood decking
- Composite decking
- Certain paver systems with proper support
Before installation, it is important to verify that the mounting surface is structurally stable and capable of supporting both the picnic table and anchoring system.
Which Surface Mount Option Is Best for Your Project?
Choosing the right surface-mount picnic table depends on the goals of the project and the type of installation needed.
- Pedestal picnic tables are ideal for locations focused on easy cleaning and open space beneath the table.
- Web or Nexus frames work well for comfort-focused seating areas with high public use.
- Surface mount tabs are excellent when future flexibility may be needed.
- Pre-drilled frames are best for permanent installations with maximum security.
- Surface mount clamps are ideal for converting existing portable picnic tables into anchored installations.
Commercial properties such as parks, schools, apartment communities, campgrounds, restaurants, and recreational facilities often choose different mounting methods based on maintenance requirements, security concerns, and long-term site planning.
Frequently Asked Questions About Surface Mount Picnic Tables
Can a portable picnic table be surface mounted later?
Yes. Many portable picnic tables can later be surface mounted using surface mount clamps or retrofit mounting hardware.

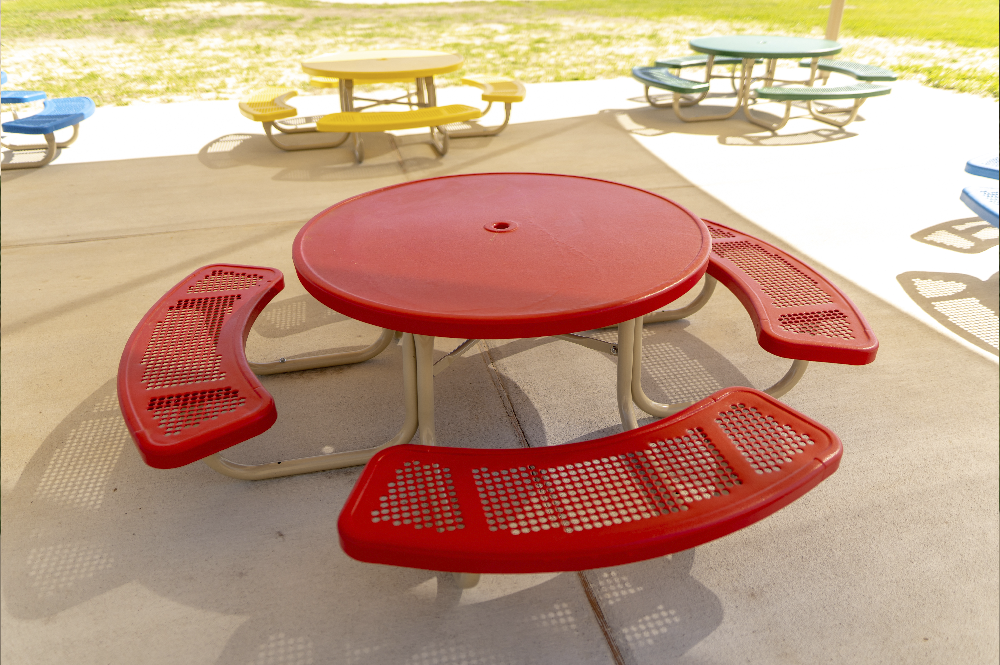

Are surface-mounted picnic tables ADA compliant?
Some surface-mounted picnic tables are available in ADA-compliant configurations that provide wheelchair accessibility. ADA compliance depends on the frame design, tabletop dimensions, and seating clearances.
Can surface-mounted picnic tables be removed later?
Yes. Most surface-mounted picnic tables can be removed by disconnecting the anchor hardware from the concrete surface.
Can surface-mounted picnic tables be installed on asphalt?
Concrete is the preferred installation surface, but certain mounting systems may allow installation on asphalt when proper reinforcement is used underneath.
Do surface-mounted picnic tables rust?
Commercial picnic tables designed for outdoor use are commonly manufactured with thermoplastic coatings, powder coating, aluminum, galvanized steel, or other weather-resistant materials to help reduce corrosion.
How thick should the concrete be for installation?
Concrete thickness requirements can vary depending on the size and weight of the picnic table and the anchor system being used. Many installations are mounted into standard concrete pads or sidewalks.
Choosing the Right Commercial Surface Mount Picnic Table
Whether you are outfitting a public park, school campus, HOA community, restaurant patio, campground, or outdoor break area, selecting the right surface mount picnic table can improve long-term durability, site safety, and maintenance efficiency.
From pedestal frames with minimal ground contact to retrofit surface mount clamps for existing portable tables, understanding the different mounting styles available can help commercial properties choose the best permanent outdoor seating solution for their space.
